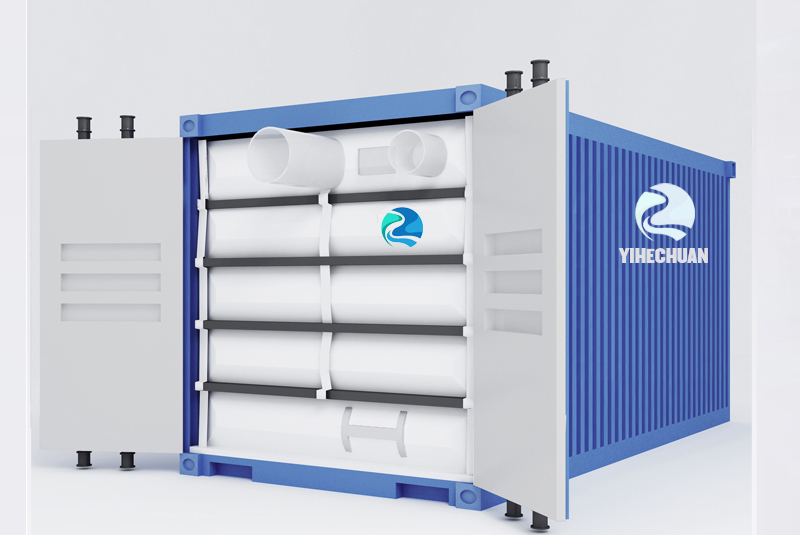

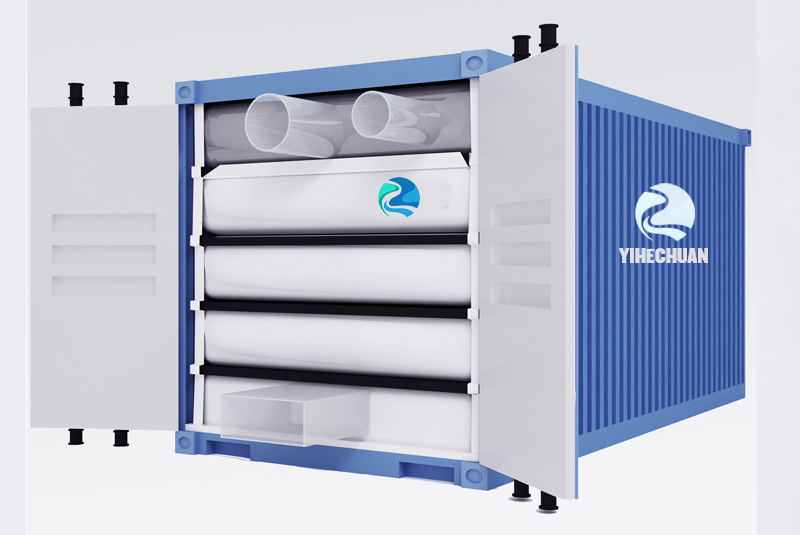

Container sea bags, also known as container lining bags, dry powder bags, and dry material bags, are usually placed in 20/30/40-foot containers and train/truck wagons to realize large-scale bulk transportation of granular and powdery materials. Because it is containerized transportation, it has the advantages of large unit transportation volume, easy loading and unloading, reduced labor force, and no secondary pollution of goods. It also greatly saves the cost and time spent on vehicle and ship transshipment. The structure of the container lining bag is designed according to the goods loaded by the customer and the loading and unloading equipment used. It can replace small-tonnage container bags/ton bags and other small packaging.
Our company has the international standard certification qualifications required for various packaging products and has achieved food-grade standardized production lines. It has food grade qualifications such as QS, FSSC22000, HACCP, BRC, Kosher and Halah.
Material: High-strength, durable polyethylene (PE) film and polypropylene (PP)
Material
Type: Suitable for 20-foot, 40-foot and special containers
Product advantages:
Maximize use of container loading space
Loading and unloading is convenient and fast, reducing labor costs
Moisture-proof and prevent external pollution
Suitable for various loading and unloading methods
Applicable Products:
Granular or powdered chemicals, agricultural products, food raw materials
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
For granular materials with low moisture-proof requirements, container lining bags (sea bags) made of high-strength, wear-resistant, and impact-resistant PP or PE woven fabric are used, which are more suitable for sliced resin products and Agricultural products with larger particle size.
Our company starts from PP/PE raw materials, drawing, weaving and producing bags. The whole process is traceable, the cost is lower, and the quality of the products can be better controlled.
Products that can be transported: PP/PE, PET, PBT, PS, PA66, ABS and other plastic particles, wheat, malt, corn, cereals, grains, coffee beans, soybeans, cocoa beans, nuts, feed, seeds, etc.
Loading method (loading platform)
1. Gravity loading: Using the loading platform, the container with the lining bag paved needs to be tilted or vertical to 90 degrees, and then gravity is used to load the cargo from the barrel into the container lining bag.
2. Pneumatic conveying and loading: Use pneumatic power to convey granules or powder to the lining bag. In this loading method, the container can be loaded horizontally.
3. Conveyor belt loading: A loading method often used in the agricultural products and mineral products industries, using conveyor belts to transport goods to lined bags.
4. Spiral machine loading: Using the loading platform, the container after the lining bag is paved needs to be tilted to a suitable angle for loading, and the screw is used to transport the goods into the container lining bag.
5. Belt throwing machine loading: It can be installed directly at the bottom of the silo, and uses the belt throwing method to throw granular or powder cargo into the lining bag.
Unloading method (unloading platform)
1. Gravity unloading: configure an unloading platform or use the self-unloading platform of the container truck to tilt the container to unload directly to the ground.
2. Pneumatic conveying and unloading: configure an unloading platform or use the self-unloading platform of the container truck to use pneumatic power to transport the particles/powder to the silo.
